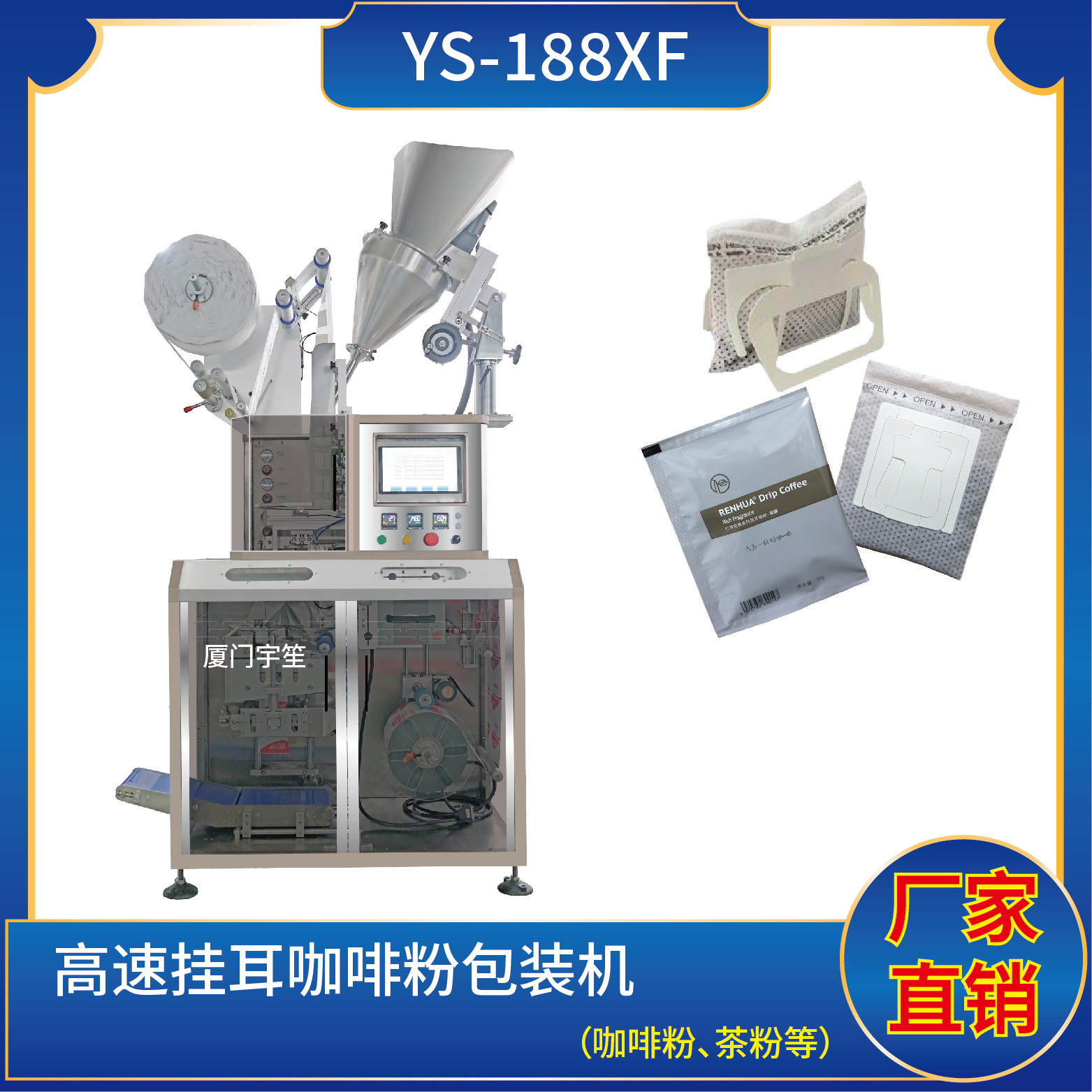

YS-188XF 高速掛耳咖啡粉末內外袋包裝機
YS-188XF 掛耳咖啡粉末內外袋包裝機
特 點 Characteristic
1、適用于咖啡粉、小顆粒狀物料。
The machine is suitable for ground coffee and small particulate material.
2、采用特定的掛耳式濾網、三邊封口、直接掛在杯子邊緣，咖啡沖泡效果更好，且袋型美觀,目前國外市場非常流行。
Adopt the special drip filter bag with three-sides sealing, which can be directly hung against the cup edge to have a better brewing effect, moreover, the neat bag shape is a high fashion in the overseas markets.
3、本機具有自動完成制袋、計量、充填、封合、分切、計數、打印批號等功能。
The machine integrates automatic function, such as bag making, measuring, filling, sealing cutting, counting, batch number printing and other functions.
4、內袋為無紡布掛耳袋，沖泡方便且衛生。封口采用先進的超聲波封，封口效果好，袋形美觀。
The drip inner bag made of non-woven fabric, guarantees covenient and hygienic brewing. The sealing adopts the advanced ultrasonic sealing, perfect sealing and beautiful bag type.
5、包裝材料：尼龍、玉米纖維、掛耳咖啡膜、復合膜（預制袋）。
Packing material：filter paper, composite membrane, nylon, corn fiber(Food grade)，drip fitter bag.
封口方式 Sealing Type
三邊封口Three sides sealing
預制袋Prefab bag
技術參數
Technical Parameters
計量范圍：1 - 15 g
Measuring Scope
內袋尺寸：長 ( L ) ：70-80 mm 寬 ( W ) ：90/95 mm
Inner bag size
外袋尺寸：長 ( L ) ：120-125 mm 寬 ( W ) ：100/105 mm
Outer bag size
包裝速度：30-45 bags/min
Packing Speed
外型尺寸：?1290 * 809 * 2170 mm
Dimension ( L * W * H )
整機重量：440 kg
Weight
總 功 率：AC220V / 50Hz / 3.7kw
Total Power
氣 源：≥0.6m3/ min
Gas source
1、適用于咖啡粉、小顆粒狀物料。
The machine is suitable for ground coffee and small particulate material.
2、采用特定的掛耳式濾網、三邊封口、直接掛在杯子邊緣，咖啡沖泡效果更好，且袋型美觀,目前國外市場非常流行。
Adopt the special drip filter bag with three-sides sealing, which can be directly hung against the cup edge to have a better brewing effect, moreover, the neat bag shape is a high fashion in the overseas markets.
3、本機具有自動完成制袋、計量、充填、封合、分切、計數、打印批號等功能。
The machine integrates automatic function, such as bag making, measuring, filling, sealing cutting, counting, batch number printing and other functions.
4、內袋為無紡布掛耳袋，沖泡方便且衛生。封口采用先進的超聲波封，封口效果好，袋形美觀。
The drip inner bag made of non-woven fabric, guarantees covenient and hygienic brewing. The sealing adopts the advanced ultrasonic sealing, perfect sealing and beautiful bag type.
5、包裝材料：尼龍、玉米纖維、掛耳咖啡膜、復合膜（預制袋）。
Packing material：filter paper, composite membrane, nylon, corn fiber(Food grade)，drip fitter bag.
計量范圍：1 - 15 g
Measuring Scope
內袋尺寸：長 ( L ) ：70-80 mm 寬 ( W ) ：90/95 mm
Inner bag size
外袋尺寸：長 ( L ) ：120-125 mm 寬 ( W ) ：100/105 mm
Outer bag size
包裝速度：30-45 bags/min
Packing Speed
外型尺寸：?1290 * 809 * 2170 mm
Dimension ( L * W * H )
整機重量：660 kg
Weight
總 功 率：AC220V / 50Hz / 3.7kw
Total Power
氣 源：≥0.6m3/ min
Gas source
適用于咖啡粉、小顆粒狀物料。
The machine is suitable for ground coffee and small particulate material.
